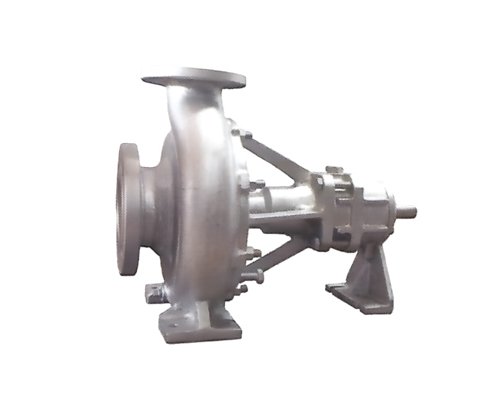

Air Cooled Thermic Fluid Pumps

Technical Data:

Maximum Capacity: 500 M3/Hr.

Maximum Delivery head: 160 Mtrs

Maximum operating temperature:  350 Deg. C

Maximum operating pressure: : 16 Bar

Maximum Speed:3500 RPM

Field of applications:

FAC Series of centrifugal pump has been specifically designed for circulating thermal oils / Hot water at elevated temperatures without the need of expensive mechanical seals and auxiliary cooling arrangements.

Design Features:

• Designed to DIN 24256/ISO 2858/ISO 5199.
• No external cooling required ensuring environmentally friendly use of resources.
• Excellent price to performance ratio.
• High efficient radial multi vane closed type impeller.
• Excellent efficiency, Low NPSH
• Sturdy mechanical design
• Back pull out design ensures quick and easy maintenance.
• Safety packing to eliminate contamination entering the bearing.
• Long life carbon plain bearing on pump end lubricated by the pumped liquid and Radial ball bearing at drive end, grease lubricated for life.
• Large mechanical seal reservoir ensures adequate lubrication to the mechanical seal.
• Shaft sealing by Standard balanced or unbalanced Mechanical seal.

Material of Constructions:

Volute casing: Nodular Cast iron EN-GJS-400-18LT

Casing cover: Nodular Cast iron EN-GJS-400-18LT

Bearing housing::Nodular Cast iron EN-GJS-400-18LT

Shaft: Chrome steel 1.4021
